Laminated Tube Making Machine
The laminated tube making machine represents a vital component in the modern packaging industry. Its innovative design and functionality allow for the production of high-quality, aesthetically pleasing packaging solutions that meet various market needs. By incorporating advanced technology, these machines provide flexibility, efficiency, and a competitive edge to manufacturers. As the demand for effective and sustainable packaging continues to grow, investing in a laminated tube making machine is an effective strategy for businesses aiming to thrive in a dynamic market landscape.
The laminated tube making machine include four parts equipment:
1. Laminated tube body making machine
2. Shoulder / Header making machine
3. Capping machine
4. Automatic visual inspection machine
Laminated tube body making machine
-- Using internal and external steel band and double high frequency
-- Automatic tension control
-- 2 sets American FIFF correction controller system
-- Double roll system ensures change roll without stopping machine
-- No glitch because of using cycle cutting device
-- Japanese Yaskawa Bus control system
-- Fits PBL, ABL and high light material
Voltage: 380V, 50Hz
Voltage: 380V, 50Hz
Power: 13KW
Speed: 120 - 200pcs/min
Tube diameter: 16 - 60mm
Laminated foil thickness: 200 - 600um
Laminated foil thickness: 200 - 600um
Tube length tolerance: ± 3mm
Footprint: 4,500 * 920 * 1,700mm
Footprint: 4,500 * 920 * 1,700mm
Shoulder and Header making machine
Voltage: 380V, 50Hz
Power: 13KW
Speed: 55 - 60pcs/min
Tube diameter: 19 - 60mm
Tube length: 50 - 250mm
Footprint: 3,300 * 1,800 * 2,200mm
Capping machine
Voltage: 380V, 50Hz
Power: 15KW
Speed: 90 - 100pcs/min
Tube diameter: 19 - 60mm
Tube length: 50 - 250mm
Footprint: 3,600 * 1,900 * 2,300mm
Weight: 4,000 kgs
Automatic visual inspection machine
Voltage: 380V, 50Hz
Power: 12KW
Speed: 60 - 100pcs/min
Tube diameter: 19 - 60mm
Tube length: 50 - 250mm
Footprint: 3,000 * 1,200 * 2,100mm
Weight: 1,200 kgs
Laminated Tube Making Machine Videos
Laminated Tube Making Machine Processes
1. Laminated foil (blank)
2. Laminated foil printing
3. Lamiated tube body making
4. Lamited tube header making
5. Lami tube ready to use
6. Laminated tube coding
7. Laminated tube filling
8. Laminated tube sealing end
Laminated Tube Making Machine Add-on Equipment
Automatic labeling machine
Lami tube sorting machine

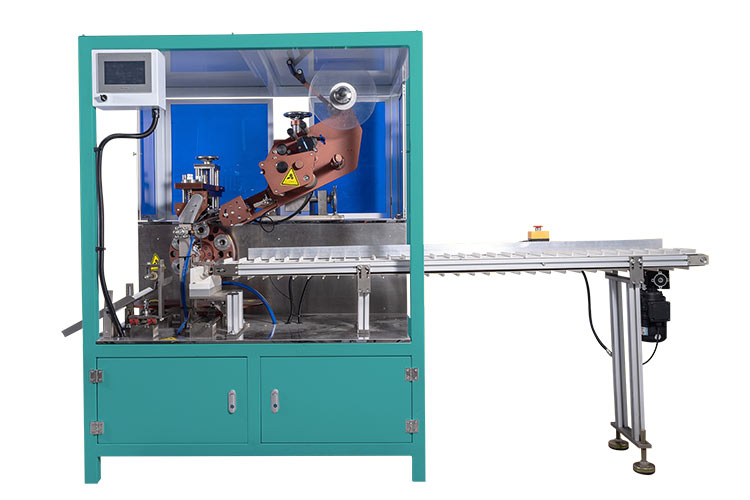

Automatic hot stamping machine
Lami tube laminating machine
Laminated tube filling machine
Lami tube sealing machine
Caps screen printing equipment
Lami tube screen printing machine
