Advanced mechanical design brings stability to high-speed lami tube making machine by strengthening rigidity and improving torsional resistance. Manufacturers face challenges such as customization complexity, tooling limitations, and heat treatment errors. Automated systems and advanced manufacturing methods help solve these issues, increasing efficiency and product quality.
| Challenge | Solution |
|---|---|
| Customization Complexity | Automation and 3D modeling streamline processes. |
| Tooling Limitations | Flexible tooling solutions minimize delays. |
| Heat Treatment and Annealing | Monitoring technologies ensure precision. |
| Preventing Material Contamination | Hygiene protocols maintain product safety. |
| Cracking and Ductility Issues | Material selection and forming control improve results. |
| Testing and Quality Control | Advanced inspection methods provide faster solutions. |
| Maintaining Industry Standards | Streamlined systems help meet compliance. |
| Production Efficiency and Costs | Continuous monitoring adapts processes and reduces costs. |
Key Takeaways
- Advanced mechanical design enhances stability in lami tube making machine by using materials like CFRP to improve rigidity and reduce vibrations.
- Automation streamlines production processes, increasing efficiency and reducing manual labor, which leads to higher output and fewer defects.
- Real-time monitoring with IoT sensors helps prevent unexpected machine failures, ensuring continuous production and reducing downtime.
- Regular training and routine inspections are essential for maintaining high-quality standards and operational efficiency in lami tube manufacturing.
- Implementing modular designs allows for faster repairs and upgrades, making the production process more flexible and responsive to changes.
Mechanical Design in Lami Tube Making Machine
Precision Engineering
Precision engineering forms the backbone of every lami tube making machine. Engineers focus on achieving a high stiffness to weight ratio by selecting advanced materials such as cfrp. This approach allows the machine to maintain rigidity while reducing unnecessary mass. The integration of cfrp into mechanostructures supports lightweight design and improved dynamic behavior. Manufacturers use high-speed machine tool components to ensure accuracy during the manufacturing process. Application-oriented structural design helps optimize the machine for specific production needs. Multi-layer structure design enables the production of laminated tubes with diverse specifications. These innovations result in practical performance improvements and consistent output.
Tip: Precision engineering relies on the careful selection of materials and the integration of cfrp to achieve both durability and flexibility in mechanostructures.
| Innovation Type | Description |
|---|---|
| Fully Automation and High-Efficiency | Reduces manual intervention and increases production capacity. |
| Multi-Layer Structure Design | Allows for the production of tubes with various specifications and lamination structures. |
| High-Precision Control System | Ensures accurate control over the production process, enhancing quality and consistency. |
| Energy-Efficiency Optimization System | Incorporates energy-efficient components to minimize waste and heat loss during production. |
| Modular Design in Production Line | Provides flexibility in configuring production modules to meet diverse demands. |
| Intelligent Control System | Integrates advanced control systems for easier operation and reduced manual intervention. |
Vibration Control
Vibration control plays a critical role in maintaining stability in high-speed machine tool operations. Engineers design mechanostructures with a high stiffness to weight ratio to minimize vibrations. The integration of cfrp into the structural design absorbs shocks and dampens oscillations. Modular beds and dynamic behavior analysis help reduce the impact of external forces on the machine. Manufacturers use advanced testing instruments, such as the Dart Impact Tester and Coefficient of Friction Tester, to evaluate the vibration resistance of materials. These measures ensure the integrity of the lami tube making machine and protect the manufacturing process from disruptions.
| Testing Instrument | Purpose |
|---|---|
| Dart Impact Tester | Tests impact resistance against free-falling darts. |
| Coefficient of Friction (COF) Tester | Assesses static and kinetic friction of plastic films. |
| Rub Resistance Tester | Measures durability against repeated rubbing. |
| Vacuum Leak Tester | Detects leaks and micro-holes in packaging. |
| Digital Thickness Gauge | Measures material wall thickness. |
Automation in Lami Tube Making Machine
Automation transforms the lami tube manufacturing process for laminated tubes. Engineers integrate intelligent control systems and PLC technology to streamline operations. Automated sealing and capping functions reduce manual labor and human error. The machine achieves a consistent production rate of 240 assemblies per hour, boosting overall equipment effectiveness. Automation also supports eco-friendly packaging tube production by enabling the use of bio-based and recycled materials. Continuous development of energy-efficient solutions and reduction in water and air consumption further enhance the sustainability of the manufacturing process.
| Feature | Description |
|---|---|
| Production Speed | Highly improved for aluminum-plastic tubes |
| Automation Level | Semi-automatic injection molding integration |
| Quality Improvement | Solved low production efficiency and quality issues |
| Sealing Function | Automatically seals tubes with aluminum foil |
| Capping Function | Automatically caps tubes |
| Control System | PLC system ensures smooth and stable operation |
- Eco-friendly packaging tubes production
- Use of bio-based and recycled materials
- Continuous development of energy-efficient solutions
- Reduction in water and air consumption
| Outcome | Description |
|---|---|
| Production Rate | Consistent output of 240 assemblies per hour |
| Manual Labor Reduction | Drastic reduction in manual labor and human error |
| Quality Control | Streamlined production flow with fewer issues |
| Overall Equipment Effectiveness | Improved overall equipment effectiveness (OEE) |
| Capacity Increase | Increased capacity without expanding labor space |
| Production Efficiency | Significant boost in production efficiency |
Structural Integrity
Structural integrity ensures the durability and reliability of every lami tube making machine. Engineers use advanced materials, including cfrp, to reinforce mechanostructures and maintain a high stiffness to weight ratio. The structural design undergoes rigorous testing with instruments such as the Peel/Seal/Bond Adhesion Strength Tester and Laboratory Heat Sealer. These tests confirm the machine’s ability to withstand heat, friction, and repeated use. Compliance with ASME quality and safety standards guides the design process and guarantees consistent performance. Continuing education and periodic inspections help maintain high standards in future technological development.
| Testing Instrument | Purpose |
|---|---|
| Peel/Seal/Bond Adhesion Strength Tester | Evaluates seal adhesion between film layers or labels. |
| Laboratory Heat Sealer | Analyzes seal integrity under heat. |
| Hot Air Oven (Lab) | Checks resistance against dry heat exposure. |
| Melt Flow Index Tester, Tensile Tester | Structural and chemical property testing. |
Note: Smart technology integration, including IoT, enables real-time monitoring and data collection. This trend optimizes the manufacturing process and supports customization options for brands seeking unique laminated tube designs.
- Quality Standards: ASME certification ensures consistent and dependable quality in the finished equipment.
- Safety Standards: Compliance with ASME safety standards is mandatory, influencing the design to meet various safety regulations.
- Continuing Quality: Ongoing education and periodic inspections ensure future designs maintain high safety and quality standards.
Impact on Output
Efficiency Gains
Manufacturers achieve remarkable efficiency gains by applying advanced mechanical design to the lami tube making machine. Engineers use servo motor control and IoT integration to optimize the dynamic behavior of the machine. These innovations allow the machine to operate at higher speeds while maintaining precision. The use of cfrp in lightweight design reduces energy consumption and increases throughput. Advanced welding techniques further enhance the dynamic behavior, ensuring smooth transitions between production stages. As a result, the machine minimizes waste and maximizes overall equipment effectiveness. Lower production costs follow, as the machine requires fewer resources and less manual intervention.
Tip: Efficiency improvements in the lami tube making machine directly impact production costs, making the process more sustainable and profitable.
Quality Improvement
Quality improvement stands as a key outcome of modern design strategies. Engineers select cfrp for its superior strength and flexibility, which supports the lightweight design of the machine. This choice improves the dynamic behavior and ensures consistent performance during high-speed operations. The machine produces laminated tubes with uniform wall thickness and reliable seals. Automated inspection systems monitor every stage, catching defects early and maintaining high standards. The design of the machine allows for quick adjustments, supporting customization and reducing the risk of errors. Manufacturers see fewer rejected products and higher customer satisfaction.
| Quality Feature | Benefit |
|---|---|
| Uniform Wall Thickness | Consistent tube performance |
| Reliable Seals | Enhanced product safety |
| Automated Inspection | Early defect detection |
| Customization Support | Flexible production options |
Downtime Reduction
Downtime reduction becomes possible through robust design and smart technology. Engineers reinforce the machine with cfrp, improving its dynamic behavior and structural integrity. The lightweight design allows for faster maintenance and easier part replacement. IoT sensors track machine health in real time, alerting operators to potential issues before they cause stoppages. Modular beds and advanced control systems simplify troubleshooting. The machine operates with greater reliability, reducing unplanned downtime and keeping production schedules on track. Manufacturers benefit from higher output and lower maintenance costs.
- Real-time monitoring prevents unexpected failures.
- Modular design speeds up repairs and upgrades.
- Enhanced reliability keeps production continuous.
Case Studies
Implementation Examples
Manufacturers have adopted advanced mechanical design to improve the stability of the lami tube making machine. One company upgraded its production line by integrating cfrp into the frame and moving parts of the machine. This change increased rigidity and reduced vibration during high-speed operation. The machine produced laminated tubes with consistent wall thickness and reliable seals. Another manufacturer installed modular beds and servo motor controls. The machine achieved faster changeovers and minimized downtime. Engineers used IoT sensors to monitor the machine in real time, which helped them detect issues before they affected lami tube production. These examples show how cfrp and smart systems transform the lami tube making machine into a reliable and efficient tool for producing laminated tubes.
Note: Companies that invest in cfrp technology and intelligent control systems see measurable improvements in output and product quality.
Common Challenges and Solutions
Manufacturers faced several challenges when implementing advanced mechanical design in the lami tube making machine:
- High initial costs for cfrp components and digital systems.
- Need for skilled labor to operate and maintain the machine.
- Increased complexity from digital integration, requiring regular software updates.
- Downtime caused by machine malfunctions or improper calibration.
- Changing regulatory standards that demand frequent machine adaptation.
- Supply chain disruptions affecting cfrp and other machine parts.
Engineers overcame these obstacles by training staff, partnering with reliable suppliers, and investing in predictive maintenance tools. They also updated software regularly and designed the machine for easy calibration.
Best Practices
Successful manufacturers follow best practices to maximize the benefits of advanced mechanical design in the lami tube making machine. They select high-quality cfrp for critical machine components to ensure durability and stability. Regular training keeps operators skilled in machine maintenance and troubleshooting. Companies use modular beds to simplify repairs and upgrades. IoT integration allows real-time monitoring of the machine, reducing unexpected downtime. Engineers schedule routine inspections and software updates to keep the machine running smoothly. These practices help maintain high output rates and consistent laminated tube quality.
| Best Practice | Benefit |
|---|---|
| Use of cfrp in key parts | Improved rigidity and vibration control |
| Modular bed design | Faster repairs and upgrades |
| IoT sensor integration | Real-time machine health monitoring |
| Staff training | Skilled operation and maintenance |
| Routine inspections | Early detection of potential issues |
Tip: Consistent application of these best practices ensures the lami tube making machine delivers reliable performance and high-quality laminated tubes.
Conclusion
Advanced mechanical design and automation give the lami tube making machine greater stability and reliability. Engineers use cfrp to strengthen the structure and improve performance. Manufacturers see benefits such as:
- Higher efficiency and faster production of laminated tube products
- Better quality and fewer defects
- Reduced downtime and easier maintenance
They should consider these innovations to stay competitive. Future design improvements will continue to shape the industry.
FAQ
What Is a Lami Tube Making Machine?

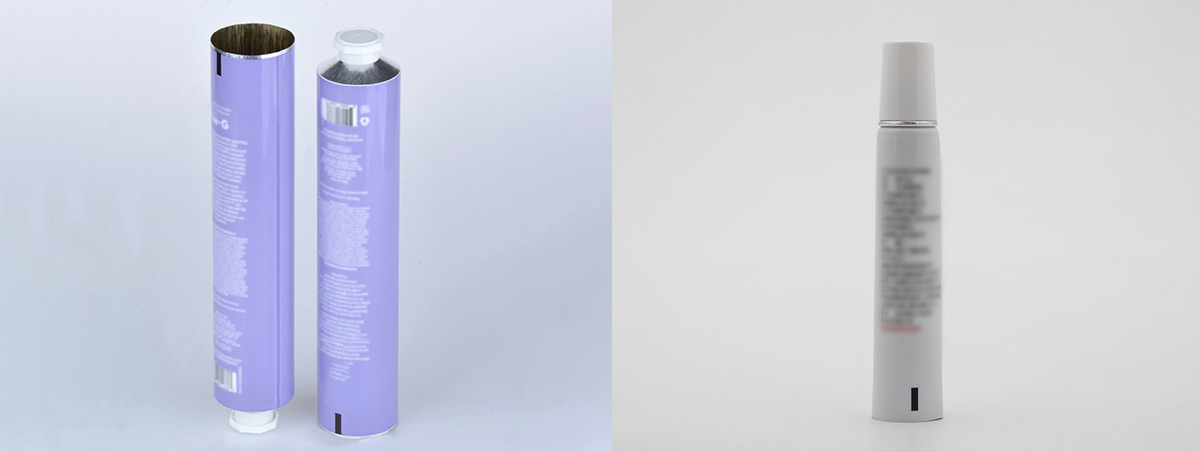

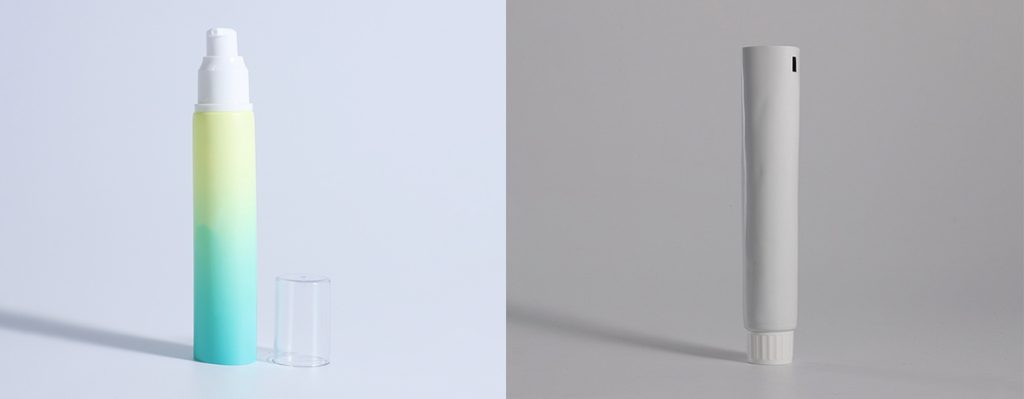

A lami tube making machine produces laminated tubes used for packaging products like toothpaste and cosmetics. The machine combines layers of different materials to create strong, flexible tubes. Manufacturers use these machines to achieve high output and consistent quality.
How Does Advanced Mechanical Design Improve Stability?
Engineers use advanced mechanical design to increase rigidity and reduce vibration in the lami tube making machine. Materials like CFRP and modular beds help maintain stability during high-speed production. This design ensures reliable performance and fewer defects.
Why Is Automation Important in Laminated Tube Production?
Automation allows the lami tube making machine to operate with minimal manual labor. Automated systems control sealing, capping, and inspection. This process increases production speed, improves tube quality, and reduces human error.
What Are the Main Benefits of Using Laminated Tubes?
Laminated tubes offer strong protection for products. They resist leaks and contamination. Manufacturers choose laminated tubes for their durability, flexibility, and ability to support custom designs.
How Do IoT Sensors Help Maintain the Machine?
IoT sensors monitor the lami tube making machine in real time. They track temperature, vibration, and other factors. Operators receive alerts about potential issues, which helps prevent downtime and keeps production running smoothly.
